Name: Compatible Headlight Lens for Mercedes-Benz GL-Class X166
SKU: 10719 - Base
Price: 1500.0 ZAR
Availability: InStock

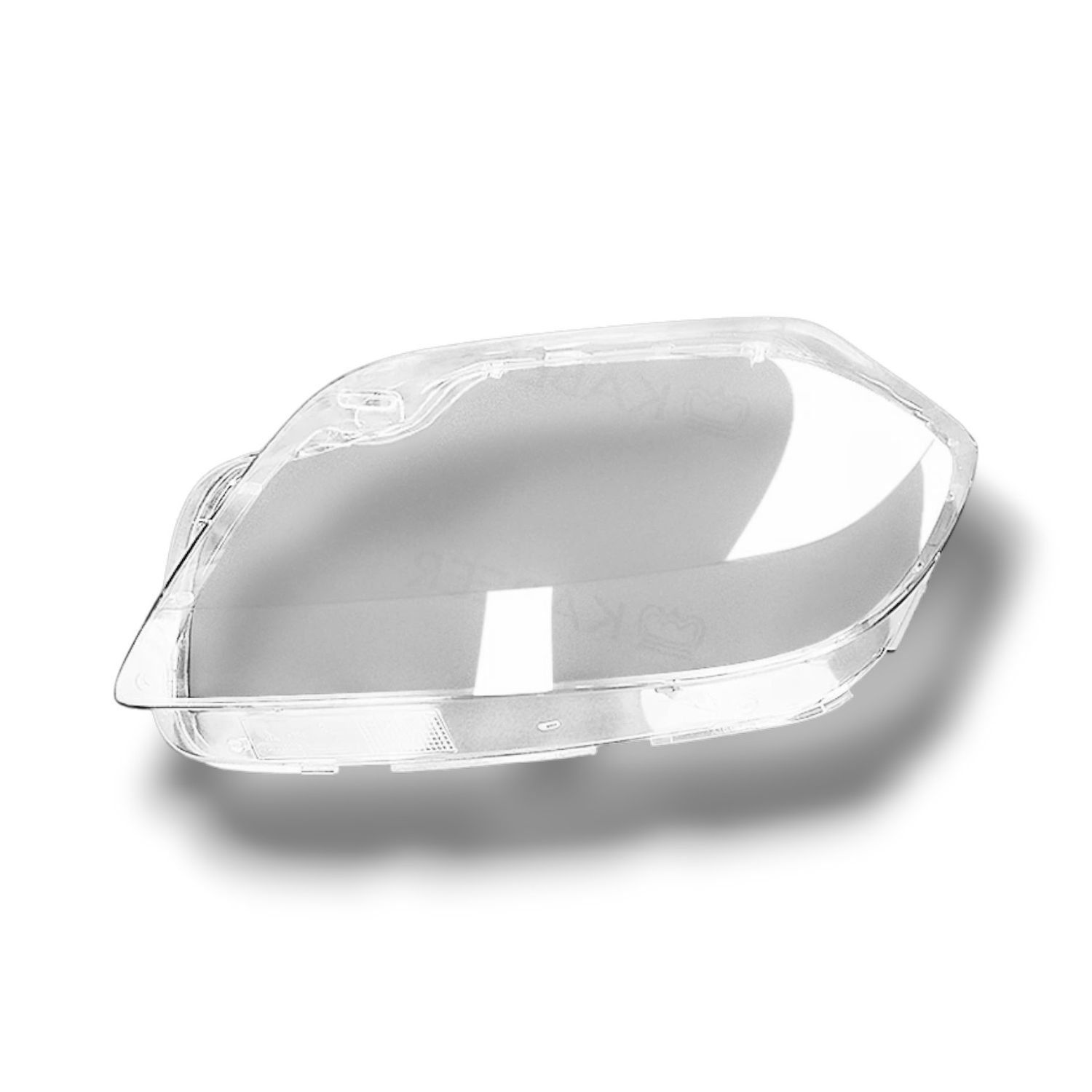

Compatible Headlight Lens for Mercedes-Benz GL-Class X166

Replacement clear polycarbonate headlamp lens for the first-generation Mercedes-Benz GL-Class (X166) pre-facelift. For use when your original lens is cracked, yellowed, or crazed. Sold per side — choose Left or Right.

What this is / isn’t:

Included: 1× clear outer lens (lens only).

Key Features:

Profile: Correct curvature and edge flange to bond cleanly to GL X166 housings.
Material: Polycarbonate lens.
Seal-Ready: Smooth perimeter lip for resealing with automotive butyl or PU Headlight sealant.
Cost-Effective: Renew only the damaged lens; keep your working internals.

Compatibility:

GL-Class (X166) — 2013–2015 Pre-Facelift
Not for GLS (2016–2019 facelift X166) and not for ML/GLE (W166). Always confirm via VIN And visually match the lens outline to your original.

Lens subcomponents carry variant-specific suffixes — verify by VIN And the stamp on your existing lens.

What’s Included / Not Included:

Included: 1× clear headlamp lens only, side-specific.
Not included: Housing, optics/modules, control units, DRL/indicator boards, adjusters, gaskets, rear covers, or sealant.

Installation Notes (Pro Tips):

Remove lamp; gently heat the perimeter (low-heat oven or careful heat gun) to soften factory adhesive.
Separate lens; remove all old butyl/PU And test-fit before bonding.
Use butyl rope (serviceable) or automotive PU (permanent). Clamp/tape evenly while curing.
Ensure vent ports are clear; replace desiccant if fitted.
After refit, check headlight aim and do a light-mist leak test to verify seal integrity.
Beam pattern is set by the internal optics — replacing the lens does not Change RHD/LHD cutoff.

Q&A
Q1: Will a new lens stop condensation?
A1: Condensation has several possible causes. Inspect the housing, vents and existing seal, and confirm that the lens is the faulty part before ordering.

Q2: Is adhesive included?
A2: No. Use butyl or PU Headlight sealant.

Q3: Can this lens fit the GLS facelift (2016–2019)?
A3: No. The facelift GLS uses different lamp tooling. Order the X166 GLS-specific lens.

Q4: Left or Right — which do I choose?
A4: Order the side matching your damaged lamp. On right-hand-drive vehicles, Left = passenger, Right = driver. Verify against your VIN And lens outline.

Condition: New aftermarket replacement part. Not an original Mercedes-Benz part; brand and model names are used only to show fitment.
