Name: Compatible Headlight Lens for Mercedes-Benz S-Class W222 Facelift
SKU: 10504 - Base
Price: 1260.87 ZAR
Availability: InStock

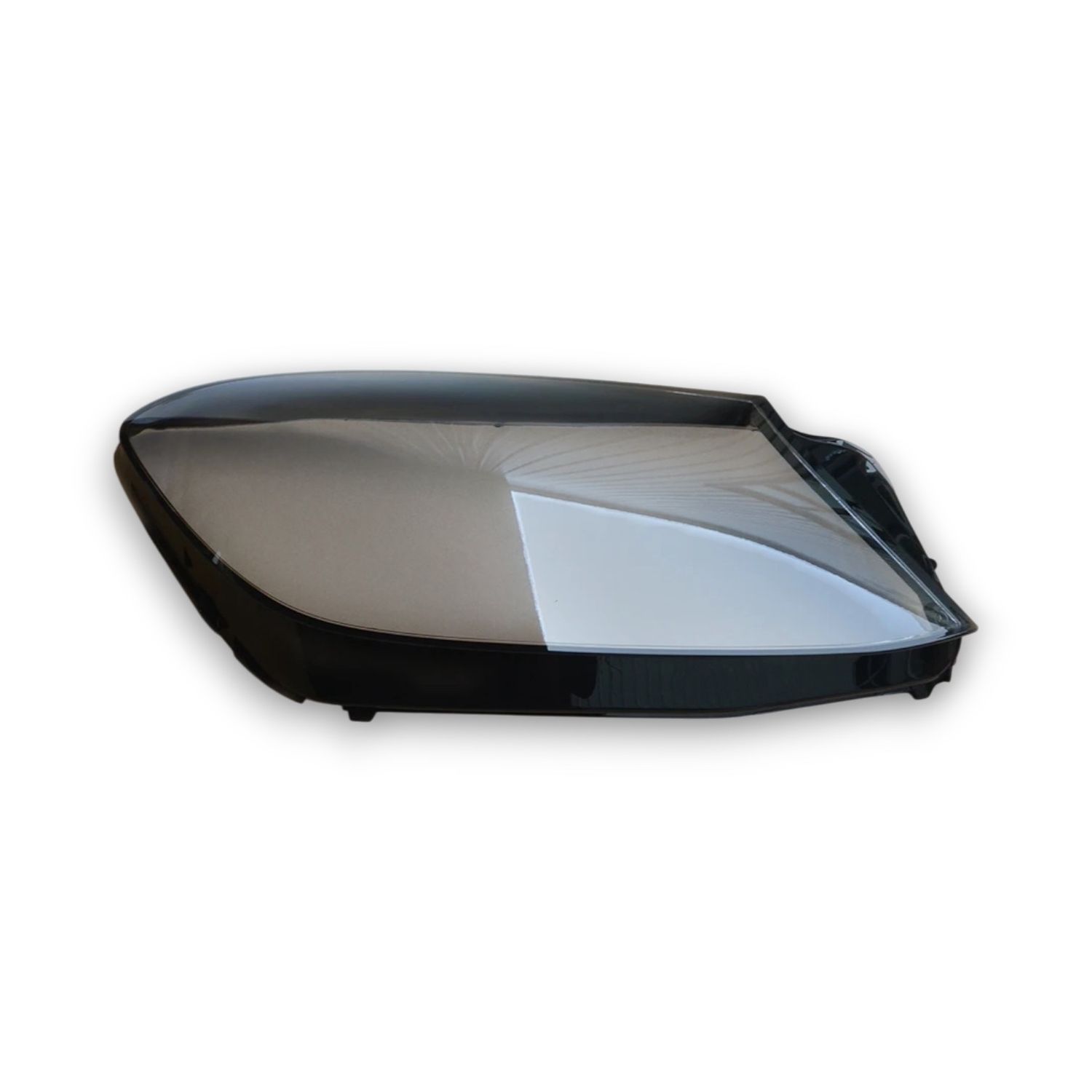

Compatible Headlight Lens for Mercedes-Benz S-Class W222 Facelift

Replacement clear polycarbonate headlamp lens for the facelift Mercedes-Benz S-Class Sedan (W/V222, incl. Long wheelbase). For use when your original lens is cracked, yellowed or crazed. Sold per side — choose Left or Right.

What this is / isn’t:

Included: 1× clear outer lens (lens only).

Key Features:

Profile: Correct curvature and edge flange for a clean bond to W/V222 facelift (MOPF) housings.
Material: Polycarbonate lens.
Seal-Ready: Smooth perimeter for resealing with automotive butyl or PU Headlight sealant.
Cost-Effective: Replace only the damaged lens; retain your working internals and electronics.

Compatibility:

S-Class Sedan (W/V222) — 2017–2020 Facelift
Works with LED High Performance and MULTIBEAM LED Variants where the outer lens outline is shared (internal tech differs).
Not for pre-facelift 2014–2017, Coupé/Cabriolet (C/A217), or W223 (2021–Present). Maybach (X222) may use variant-specific trims — confirm by VIN.

Lens subcomponents carry variant-specific suffixes — verify by VIN And the stamp on your original lens.

What’s Included / Not Included:

Included: 1× clear headlamp lens only, side-specific.
Not included: Housing, optics/modules, control units, DRL/indicator boards, adjusters, gaskets, rear covers, or sealant.

Installation Notes (Pro Tips):

Remove lamp; gently heat the perimeter (low-heat oven or careful heat gun) to soften factory adhesive.
Separate lens; remove all old butyl/PU And test-fit before bonding.
Use butyl rope (serviceable) or automotive PU (permanent). Clamp/tape evenly while curing.
Ensure vent ports are clear; replace desiccant if fitted.
After refit, check headlight aim and do a light-mist leak test to verify seal integrity.
Beam pattern is set by the internal LED/MULTIBEAM optics — the lens does not Change RHD/LHD cut-off.

Q&A
Q1: Will a new lens stop condensation? Condensation has several possible causes. Inspect the housing, vents and existing seal, and confirm that the lens is the faulty part before ordering.
Q2: Is adhesive included? No. Use butyl or PU Headlight sealant.
Q3: Can this lens convert LED High Performance ↔ MULTIBEAM? No. Those differences are internal (modules/ECUs). This lens supports like-for-like repairs.
Q4: Left or Right — which do I choose? Order the side matching your damaged lamp. On RHD vehicles, Left = passenger, Right = driver. Confirm via VIN And visual match to your existing lens outline.

Condition: New aftermarket replacement part. Not an original Mercedes-Benz part; brand and model names are used only to show fitment.
